E Beam Sterilization Equipment

Contents

A 10MeV E Beam Sterilization Equipment is a device that uses a microwave field to accelerate electrons to 10MeV,then to do irradiation with a high-energy electron beam. Its basic principle is as follows: an electron gun emits electrons and injects them into the acceleration tube, accelerated to near the speed of light and then extracted from the titanium window through a scanning magnet.

E Beam Sterilization Priciple

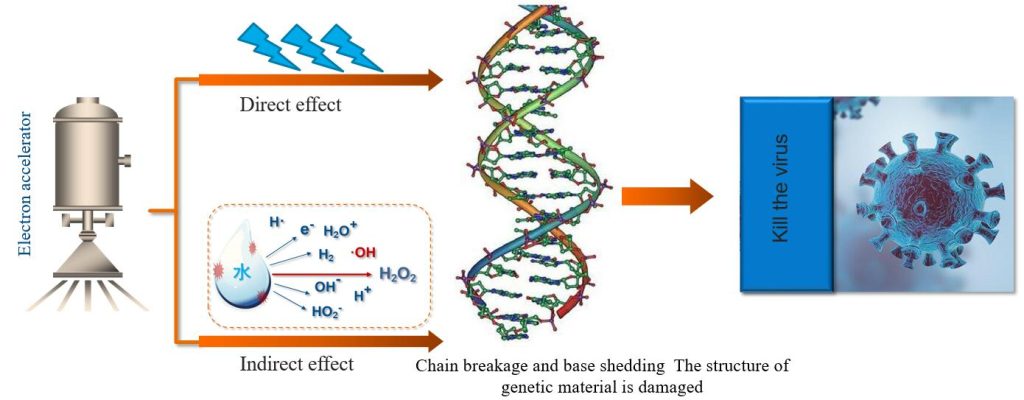

E Beam Sterilization Processing – Why can electron beams be used for disinfection and sterilization? As shown in the following figure, the chain breakage and base shedding. The structure of genetic material is damaged.

E Beam Sterilization Priciple

What’s the advantage of E(Electron) Beam disinfection and sterilization?

Sterilization method	Scope of application	Is there any residue?	Sterilization temperature	Temperature rise	Sterilization takes time	One-time sterilization quantity	Post-processing procedure
E-beam sterilization method	It is almost applicable to all products	No	At room temperature	Lower	Short	It can be sterilized continuously in a cycle	No
Dry heat sterilization method	Suitable for high-temperature resistant products	No	160～250	High	Long	It is determined by the sterilization container	It needs to be cooled for a certain period of time
Moist heat sterilization method	Suitable for products that are resistant to high temperatures and steam corrosion	Residual steam	80～120	High	Long	It is determined by the sterilization container	It needs to be cooled for a certain period of time
Gas sterilization method	It is applicable to products whose packaging materials need to have diffusibility and permeability	Yes	65	Lower	Very long	It is determined by the sterilization container	It needs to be left to stand for more than 48 hours to evaporate the chemical residues
Filtration sterilization method	Applicable to liquid-phase products	No	At room temperature	Lower	General	It can be sterilized continuously in a cycle	No

What’s the E beam appliction?

E-beam application

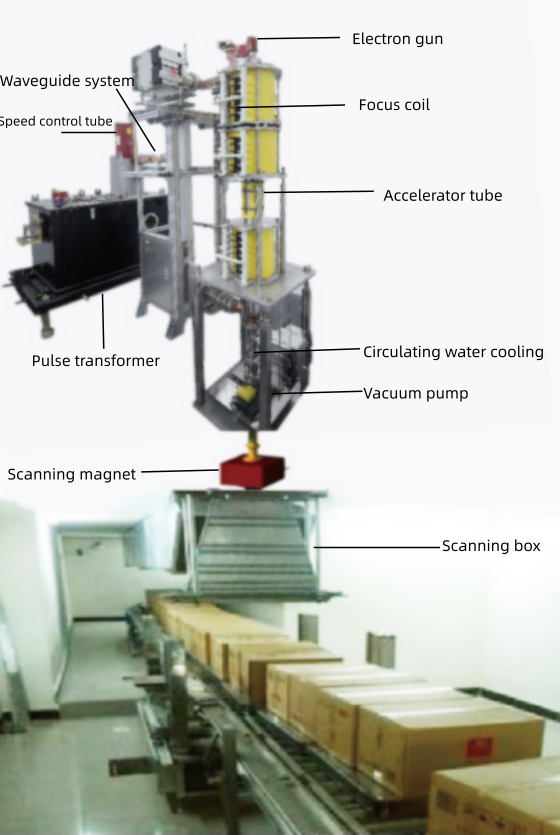

Equipment Introduction – Structure and Principle

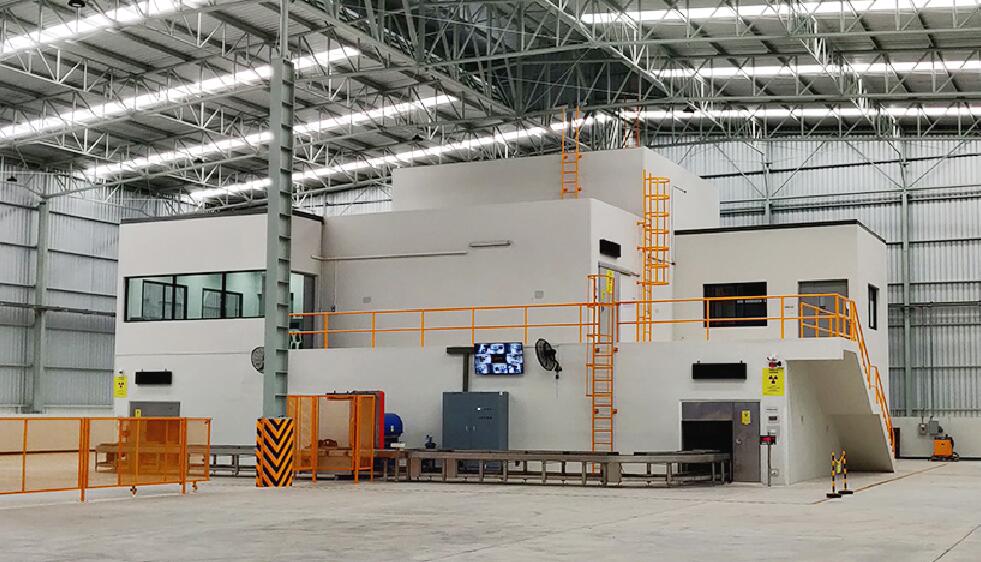

Shielding room Required for Equipment Installation

Shielding Room For E BeamMain Parameters Of E Beam Sterilization Equipment

NO	Equipment parameters	Technical indicators	Influencing factors
1	Electron beam energy	10MeV	The depth to which an electron beam can penetrate the goods
2	Electron beam energy instability	≤5%	The stability of penetration ability
3	Average current of maximum beam current	2～2.5mA	The amount of electron beam generated
4	Maximum average power of beam current	20～25kW（Measured value）	The speed of irradiation processing efficiency
5	Beam current instability	≤5%	The stability of irradiation dose
6	Scanning width	60～80cm Continuously adjustable	The width to which the goods can be irradiated
7	Scanning unevenness	≤5%	Dose consistency on the same horizontal plane
8	Transport line speed	0.5～10m/min Continuously adjustable	The adjustable range of irradiation dose
9	Speed deviation of the transportation line	≤2%	Dose consistency in the transport direction
10	Automatic flipping system	Pallet clamping type and cross fork type are available for selection	Choose based on the packaging types of most products
11	The passing height under the beam	～80cm	The maximum height of goods that can enter the irradiation chamber
12	Energy consumption	150～180kW·h	Electric power

How does a 10 MeV E Beam sterilization system work, and why does it inactivate microbes?

An electron gun emits electrons into an acceleration tube, where a microwave field accelerates them to about 10 MeV—near the speed of light. The high‑energy electrons are then extracted through a titanium window and swept across products by a scanning magnet to deliver a uniform dose. This irradiation damages the genetic material of microorganisms—causing chain breakage and base loss—so they cannot replicate, achieving disinfection and sterilization. Installation requires a shielding room to contain radiation.
