915MHZ Microwave Generator,Microwave Pulse Generator

30KW 75KW Microwave Genertor can also generate pulse microwave, for example 100-500ms width,duty cycle 0-100%–For option function

The 915MHZ  Microwave Generator adopts a continuous wave magnetron to achieve a microwave power of 25kW,30kw,50kw,75kw,100kw.(Microwave frequency 915MHz ± 25MHz). It is mainly composed of high-frequency power supply cabinet, magnetron head and  isolator with water loading(microwave tuner is optional). High-frequency power supply includes anode high-voltage power supply, filament power supply, magnetic field power supply and control system, etc.; Magnetron head includes magnetron, excitation cavity, etc.; microwave system includes circulator, etc.

The switch mode  915MHZ microwave generator has multiple protection functions, such as ignition protection, magnetron over-temperature protection, water current protection, anode over-voltage and over-current protection, filament over-current and under-current protection, and magnetic field over-current protection,running data recording,microwave reflection checking .

We can  adjust the microwave output power through the touch screen on the local high-frequency power cabinet or the remote communication RS485 mode. It can realize the arbitrary adjustment of microwave power in the range of 10% to 100%, and the spectrum width is narrow (about 1.0M),which is very useful for microwave lab appliction, MPCVD application, microwave plasma. It can be said that the switch mode microwave generator has the characteristics of high reliability, safety, high efficiency, high stability, and low EMI.

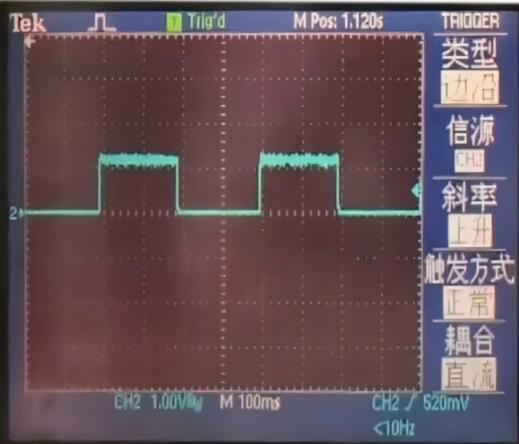

Pulse wave of microwave pulse generator

Our 915MHZ microwave generator has an optional function: it can generate pulse microwave,for exmaple , the pulse width can be adjusted from 100ms-500ms, the duty cycle can be adjusted from 0-100%. This function is useful for some application, such as heating.This pulse microwave can higher the accuracy of heating effection.

Parameters:

Frequently asked questions
