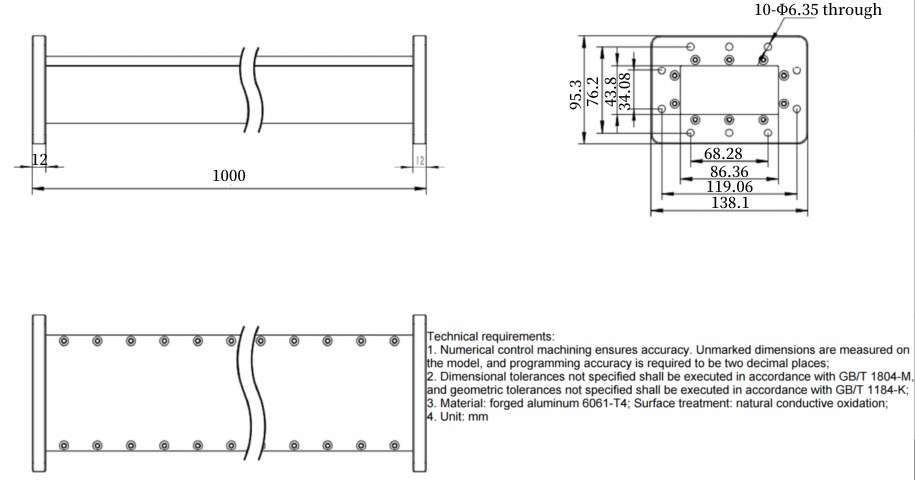

Industrial WR340/WR430 Straight waveguide for microwave

Industrial microwave straight waveguide

Frequency range of 915GHz and 2450GHz in the industrial microwave straight waveguide

Standing wave: 1.05

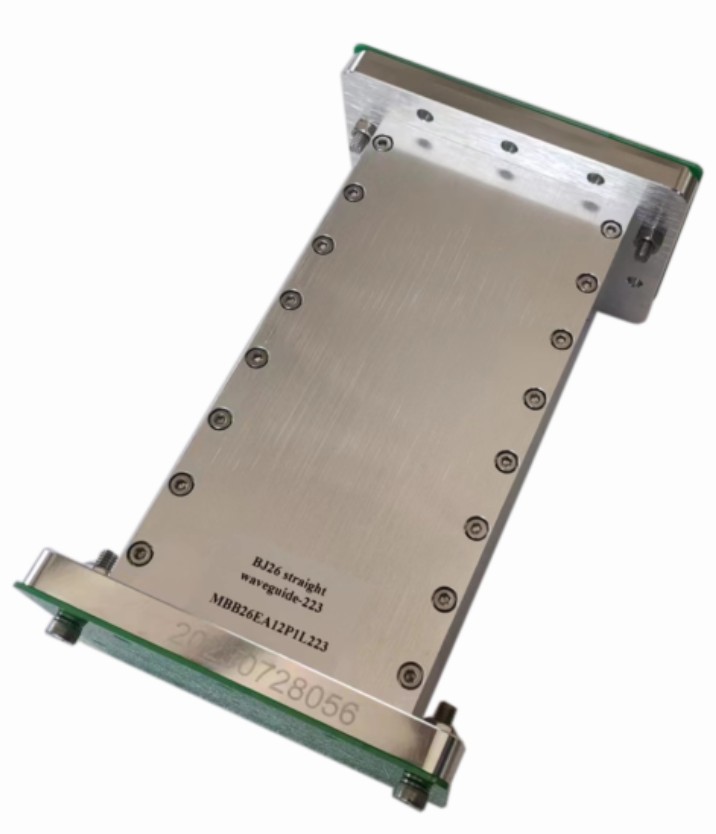

Interface model: BJ26/WR340

Body Material :Aluminum,no welding gap, flange edge flat, fixed installation without microwave leakage

Flange thickness: can be customized according to customer requirements

The overall surface is treated with oxidation, with a smooth and clean appearance, smooth inner walls, and no sparking or rusting

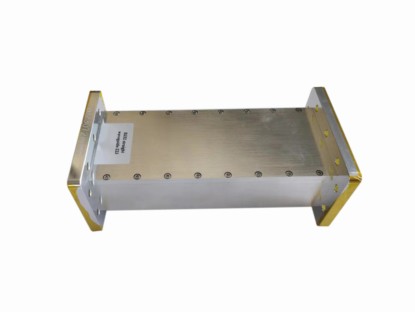

Industrial Microwave Straight waveguide (BJ32)

BJ32 Straight waveguide is a rectangular waveguide with a frequency range of 2.60GHz to 3.95GHz.

VSWR≤1.05

Interface model: BJ32/WR284

Body Material Aluminum,no welding gap, flange edge flat, fixed installation without microwave leakage

Flange thickness: can be customized according to customer requirements

The overall surface is treated with oxidation, with a smooth and clean appearance, smooth inner walls, and no sparking or rusting

Packaged: exportable packaging
