RF Generator,200W 2.45GHz Solid-state Microwave Generator For Beauty Medical Equipment

Technical parameters

1. Input voltage: DC48V-DC50V

2.Control method: RS485/RS232

3.Input frequency: 2450MHz

4.Frequency error: ±50PPm

5.Microwave leakage: ≤5mW/cm²

6.Microwave power: 0~200W(Standard Products: 0–250W), adjustable continuously

7.Output stability: ±1%@200W

8.AC efficiency: ≥60%@200W

9.Working environment: Maximum ambient temperature 40℃, maximum humidity 60%

10.Alarm signal: Current abnormal alarm (current ≥ 8A), High temperature alarm

(temperature ≥ 60℃).

11.Connector: N type (male/female)

12.Cooling method: Air-cooled

13.Fan power supply voltage: DC48V (red positive, black negative)

The application of radio frequency (RF) in plasma beauty devices is based on the characteristics of RF currents.

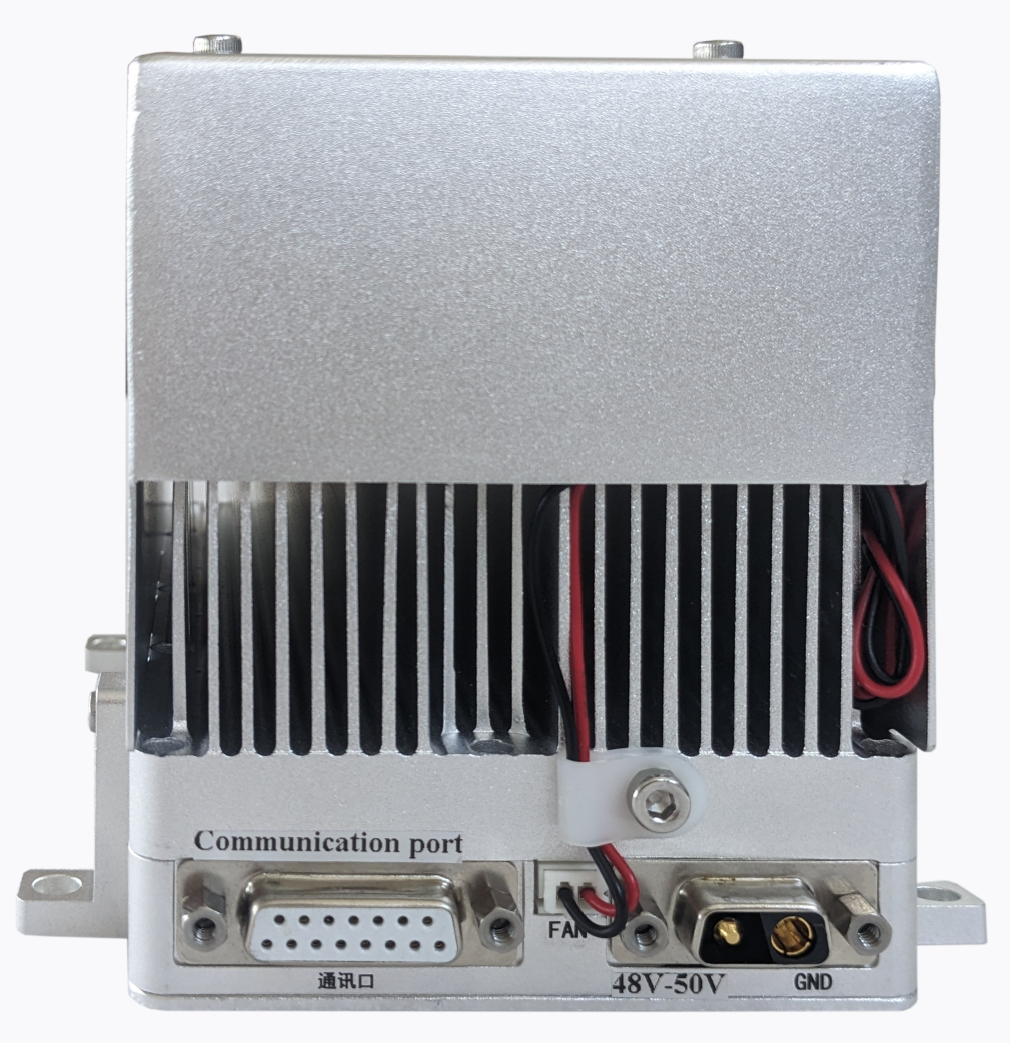

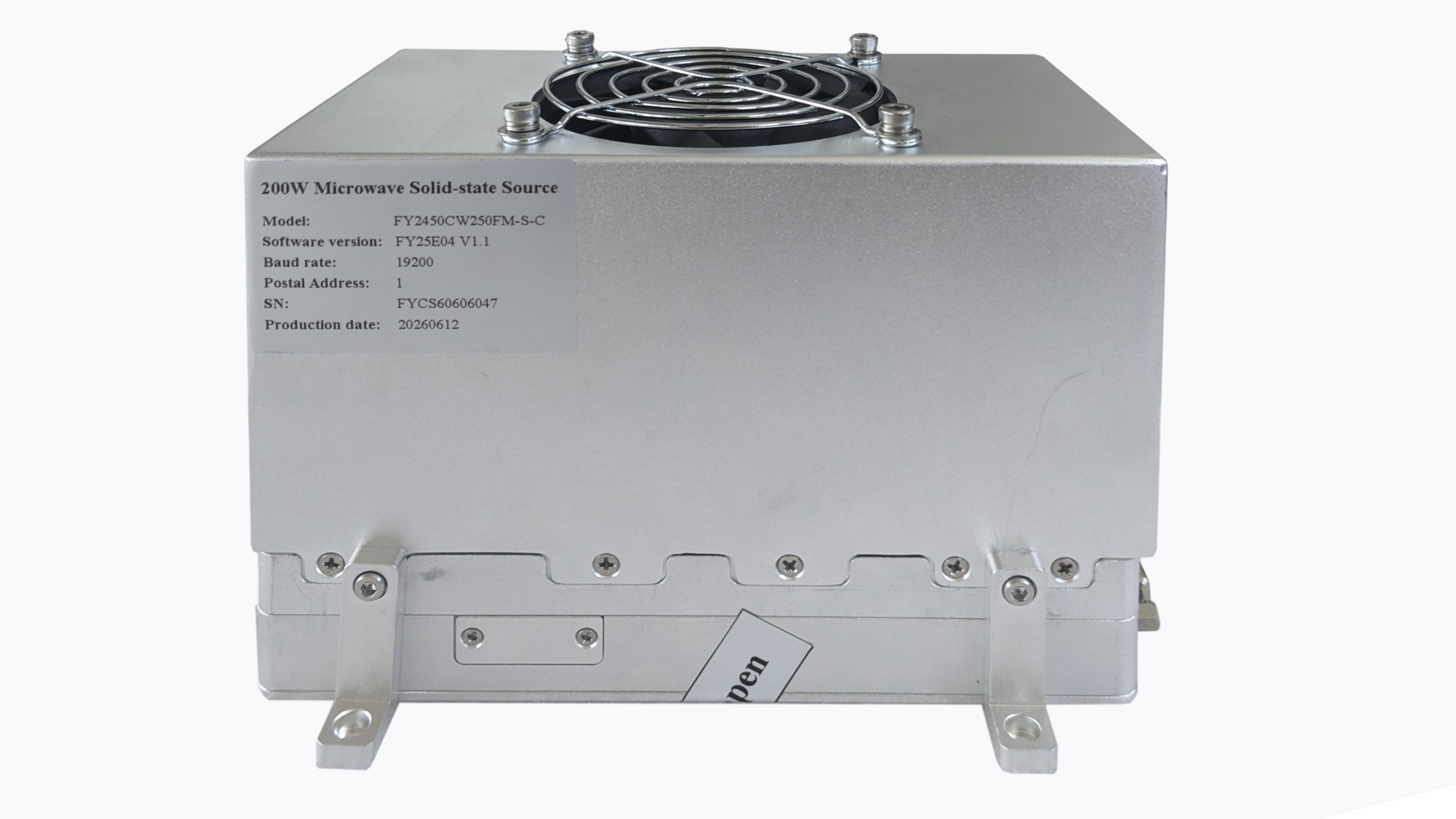

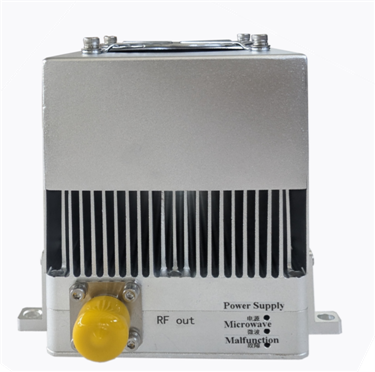

This 200W solid-state microwave source device has a continuously adjustable output power. It is small in size, lightweight, has a long lifespan and high stability, and is most suitable for microwave medical applications.

For medical aesthetics applications, the frequency of the microwave source (microwave generator) is typically set to 2.45 GHz.
