Solid State Microwave Generator-250W-2450MHZ


The solid-state microwave source module adopts a compact and compact design, having an  excellent reliability and performance. Commonly used frequency 433MHZ, 915MHZ, 2450MHZ. Solid-state microwave sources have built-in circulators and passive loads that can withstand 100% of reflected power for various VSWR applications. And has a full range of protection features, over-current, over-temperature, standing wave alarm.

Type	1	2
Key functions	Over temperature, over power (45%), standing wave (5:1), over current alarm and protection
Core technology	Solid state microwave GaN
Output power	10W-250W, 1W as step
Supply voltage	DC48V
Power supply frequency	50HZ
Output power stability	Better than ± 1% @ 250W
Output frequency	2450MHZ
Frequency error	±50ppm
Microwave leakage	≤2mW/cm2
Maximum standing wave ratio	5:1
Microwave working mode	Continuous (customizable pulse and other modes)
Phase adjusting	Optional
Power showing	On serial port
Power showing	Standard ON/OFF
Work environment	Environmental temperature: 0-40 ℃, cooling water temperature: 18-28 ℃, relative humidity ≤ 60%
Communication efficiency @ 250W	≥60%
Microwave output interface	N

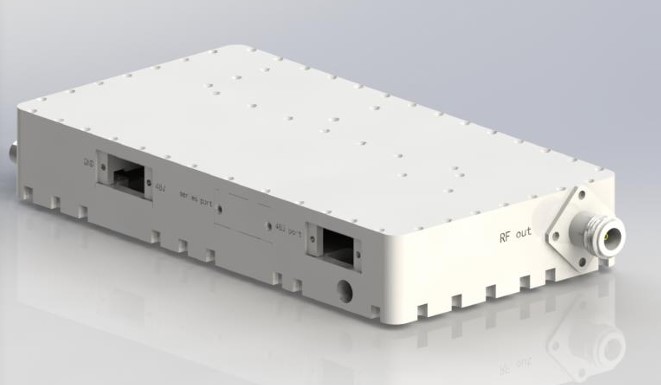

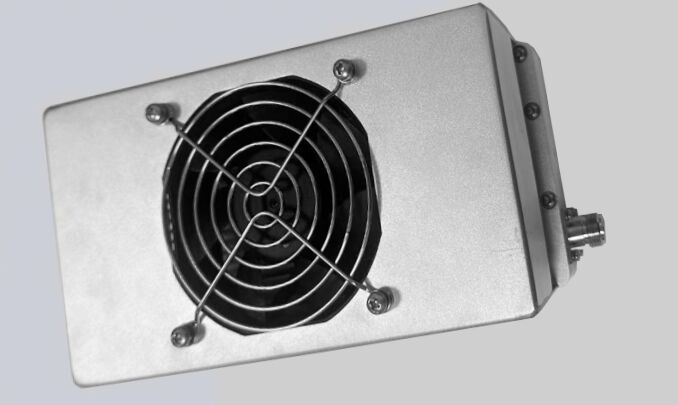

Cooling method	Water（Φ10 pagoda）	Air
Remote control	RS485 communication protocol (provides host computer software to control and display solid-state source parameters/status)
Length * Width * Height	249*112*34mm	210*132*100mm

Feature:

1.Small and compact structure, easy to integrate
2.Patented power stability scheme making the output power stability less than 1%.
3.Control interface could be chosen from analog and serial.
4.Higher reliability to stand 100% reverse power.

Application：

Solid state  microwave generator is widely applied for plasma actuation ,MPT, Engine microwave ignition, solid state microwave oven, hyperthermia apparatus ,microwave LEP lighting etc.
