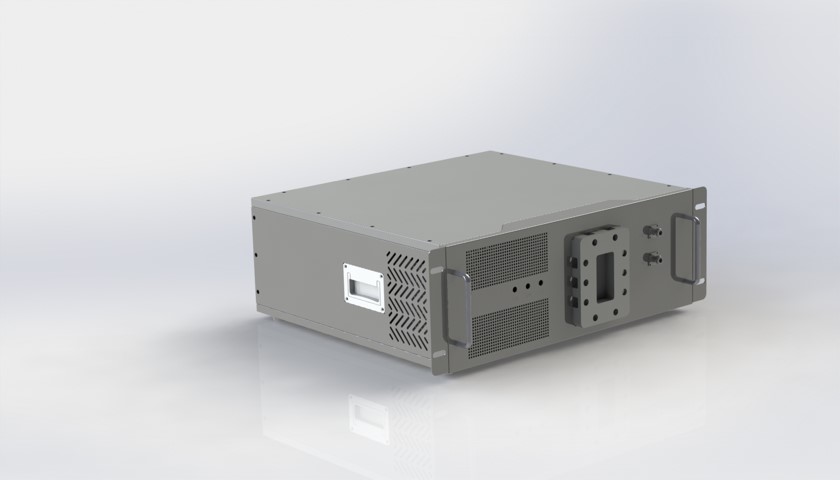

Solid State, 3KW, Water Cooling, Microwave Generator
Solid State Microwave Generator-High Power is specifically designed for ISM field.It provides higher RF Power,and it can work at both CW(Continuous Wave) and pulse status.The features of this products are: Accurate output power adjustment from 1-3000w,High frequency stability because of PLL phase-locked loop technology,excellent ruggedness because of build-in circulator & passive load for VSWR protection,Reliable performance of the whole system secured of sophisticated protective circuit.
| Type | 1 |
| Key functions | Over temperature, over power (45%), standing wave (5:1), over current alarm and protection |
| Core technology | Solid state microwave GaN |
| Output power | 100W-3000W, 1W as step |
| Supply voltage | AC380V |
| Power supply frequency | 50HZ |
| Output power stability | Better than ± 1% @ 1KW |
| Output frequency | 2450MHZ(Width can be customer designed) |
| Frequency error | ±50ppm |
| Microwave leakage | ≤2mW/cm2 |
| Maximum standing wave ratio | 5:1 |
| Microwave working mode | Continuous (customizable pulse and other modes) |
| Phase adjusting | Optional |
| Control method | LCD touch screen; RS485 |
| Starting method | Standard ON/OFF |
| Work environment | Environmental temperature: 0-40 ℃, cooling water temperature: 18-28 ℃,
relative humidity ≤ 60% |
| Communication efficiency @ 250W | ≥58%@3KW
|
| Microwave output interface | Female DIN 7/16'' RF connector |
| Cooling method | Water（Water-cooled (ID 6.5mm, OD 10mm snap-in), water flow 4L/min, inlet temperature 18-28°C） |
| Remote control | RS485 communication protocol (provides host computer software to control and display solid-state source parameters/status) |
| Length * Width * Height | 590*564*228mm
|
Control:
Digital Communication Control
Local Control(Optional)
Operating Mode:
CW
Pulse
Function & Features
1.Control: Remote monitoring operating status and remote parameter configuration available.
2.Alert Items:Reverse Power,Standing Wave,Current,Temperature with remote check function available.
3.Protection: The system will stop working automatically when the follow problem happen:standing wave/over heating/overload/over-current/over-voltage.
