Panasonic magnetron 3kw, 2M265,2M266 magnetron tube
Panasonic magnetron 3kw is mainly for industrial application on microwave heating&drying, microwave plasma.
Models including 2M265, 2M266,2M265WJ, 2M266WJ. Water cooling and Air cooling both available.

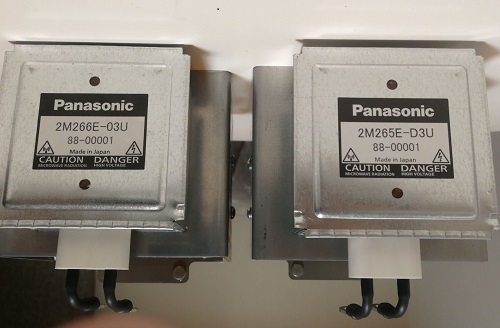

2M265, 2M266
Technical note:
1.Because the filament is quite weak against vibration and shock, please be careful about the handling.
2. Mount direction: It is recommanded to mount the antenna vertically.
SPEC of Panasonic Magnetron 3KW
| Model | output power
(W) | Filament
voltage
(V) | Filament
current
(A) | Anode Voltage
(KV) | Frequency
(MHZ) | Cooling
method | Outline
Size
(mm) | Weight
(kg) |
| 2M266WJ | 3000 | 4.0 | 22 | 5.1 | 2455 | Water | 128*123
*162 | 2.6 |
| 2M266 | 3000 | 4.0 | 22 | 5.1 | 2455 | Air | 128*123
*162 | 2.0 |
| 2M265WJ | 3000 | 4.0 | 22 | 5.1 | 2455 | Water | 128*123
*187 | 3.6 |
| 2M265 | 3000 | 4.0 | 22 | 5.1 | 2455 | Air | 128*123
*187 | 3.0 |
