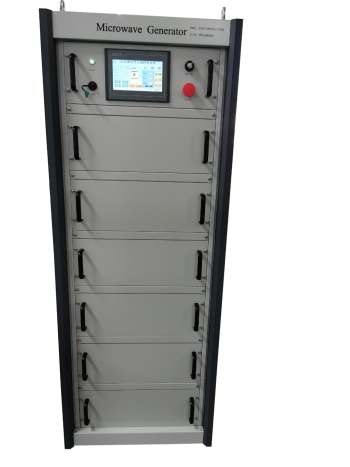

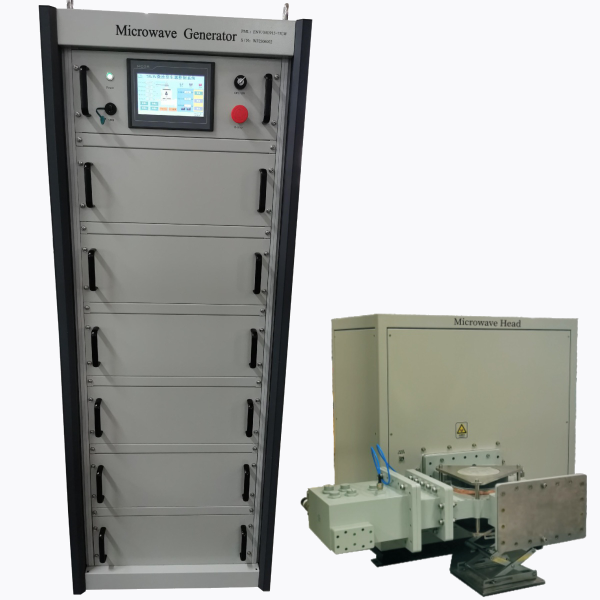

75kW 915Mhz Microwave Generator Water-cooled

Product Model:ENV/MG915-75LW

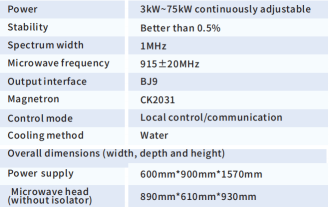

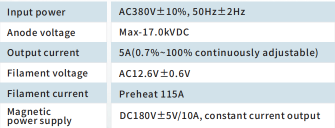

High frequency switching power supply parameters

High frequency switching power supply can be ordered separately.

Functional features：

1. The 75kw microwave generator has the protection function of filament undercurrent,anode overvoltage overcurrent,high voltage ignition,magnetic field undercurrent,reflected power,arc detection and so on.

2. It can realize aritrary adjustment of microwave power,stable and reliable operation.

3.No need to tontrol anode current through magnetic field feedback.

4.Filament current can vary with anode current.
