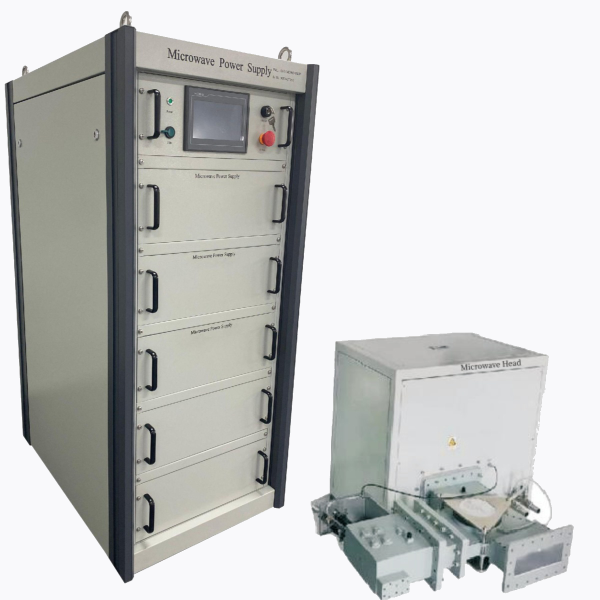

50kW 915Mhz Microwave Generator Water-Cooled

Product Model:ENV/MG915-50LW

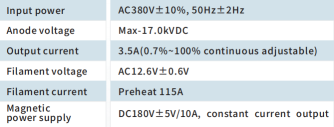

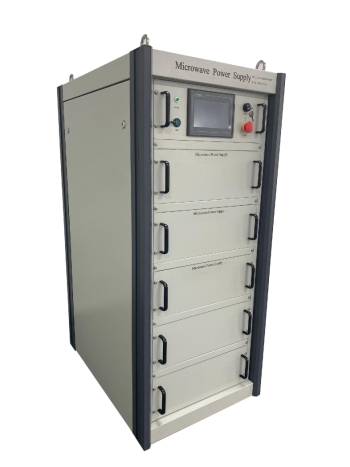

High frequency switching power supply parameters

High frequency switching power supply can be ordered separately.

Functional features:

1. The 50kw microwave power supply has the protection function of filament undercurrent,anode overvoltage overcurrent,high voltage ignition,magnetic field undercurrent,reflected power,arc detection and so on.

2. It can realize arbitrary adjustment of microwave power,stable and reliable operation.

3.The filament current varies with the anode current,and the anode current does not need to be controlled by magnetic field feedback.
