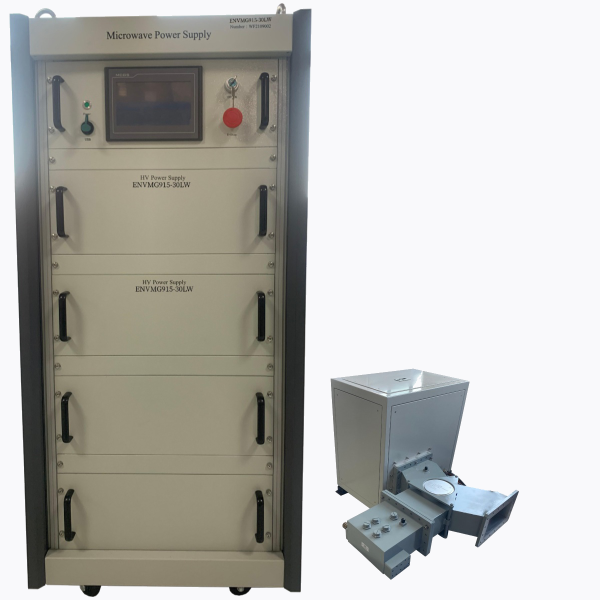

Water-cooled 30kW Microwave Generator 915Mhz

Product Model:ENV/MG915-30LW

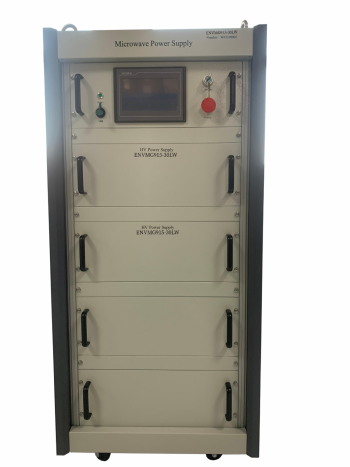

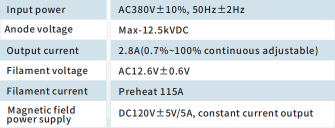

High Frequency switching power supply parameters

High frequency switching power supply can be ordered separately.

Functional features:

1. The 30kw microwave generator has the protection function of filament undercurrent,anode overvoltage overcurrent,high voltage ignition,magnetic field undercurrent,reflected power,arc detecction and so on.

2. It can realize arbitrary adjustment of microwave power,stable and reliable operation.

3.The filament current varies with the anode current.
