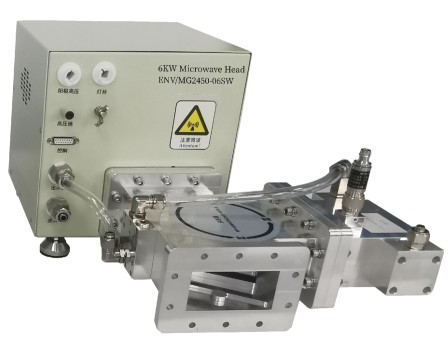

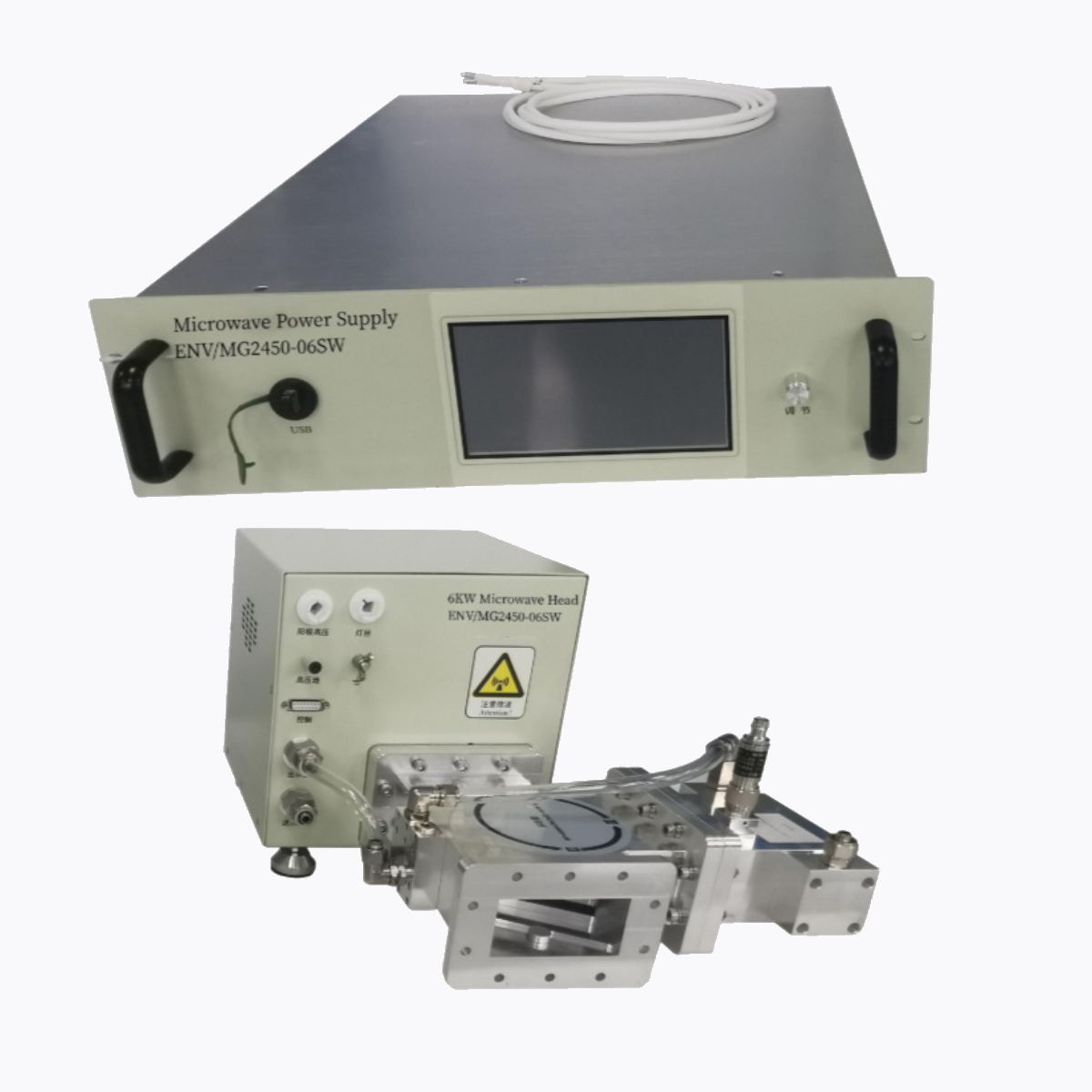

Microwave Generator 6kw 2450MHz Water-cooled

Product Model:ENV/MG2450-06SW

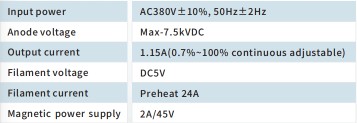

High frequency switching power supply parameters

Suitable for all brands 6kW series pipe type.

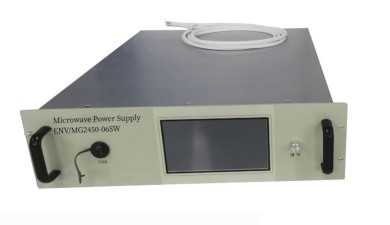

High frequency switching power supply can be ordered separately.

Functional features:

1. Local touch screen visual control interface,complete data recording and storage,(reflection protection,water flow,water temperature monitoring)with filament underflow,anode overvoltage overcurrent,high pressure ignition,magnetic field underflow,reflected power,arc detection and other protection functions.

2. The 6kw microwave generator can realize arbitrary adjustment of microwave power,stable and reliable operation.

3.The filament current varies with the anode current.
